Unrivaled power density – 12 kW/kg continuous. Scalable core technology from 30 kW to 30 MW.

JOIN THE REVOLUTION.
Patent Pending

200kW in a 18kg Package

The HPDM-250 is an ultra-high power density integrated motor drive for high performance and mass sensitive applications. It combines the electric motor, inverter, and gearbox into a single unit and is the culmination of H3X innovation in multiple areas including:

HPDM-250 Target Specifications

The HPDM-250 is optimized entirely for power density and efficiency. It features the highest level of integration on the market, made possible by our holistic design methodologies rooted in first principles and multidisciplinary expertise in power electronics and electric machines.

These specifications are estimates based on electromagnetic, thermal, and structural simulations. Data from dynamometer will be available early 2023.

Peak Torque
120 Nm
Peak Power
250 kW
Peak Duration
30 seconds
Speed Range
0 - 20,000 RPM
Continuous Torque
95 Nm
Continuous Power
200 kW
Peak Motor Efficiency
97.9%
Peak Inverter Efficiency
99.0%
Peak Combined Efficiency
96.9%
DC Bus Voltage
Up to 900 V
Mass
13.0 kg
Volume
7.77 L

These specifications are estimates based on electromagnetic, thermal, and structural simulations. H3X has tested up to 180 kW.

Peak Torque
800 Nm
Peak Power
250 kW
Peak Duration
30 seconds
Speed Range
0 - 2,985 RPM
Continuous Torque
640 Nm
Continuous Power
200 kW
Peak Motor + Gearbox Efficiency
96.4%
Peak Inverter Efficiency
99.0%
Peak Combined Efficiency
95.4%
DC Bus Voltage
Up to 900 V
Mass
16.6 kg
Volume
8.77 L

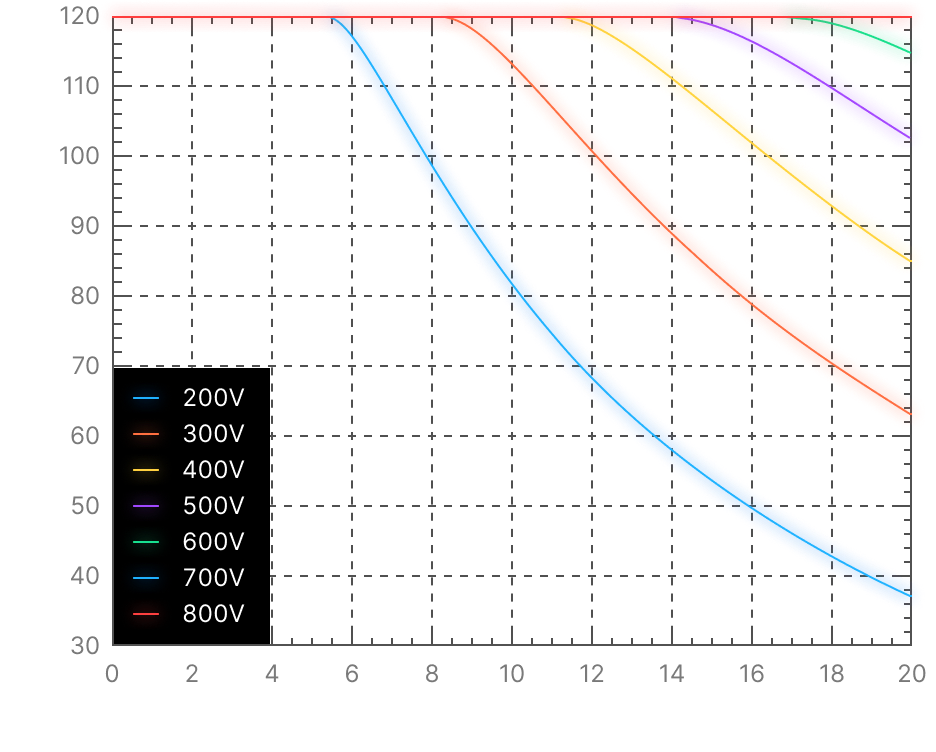

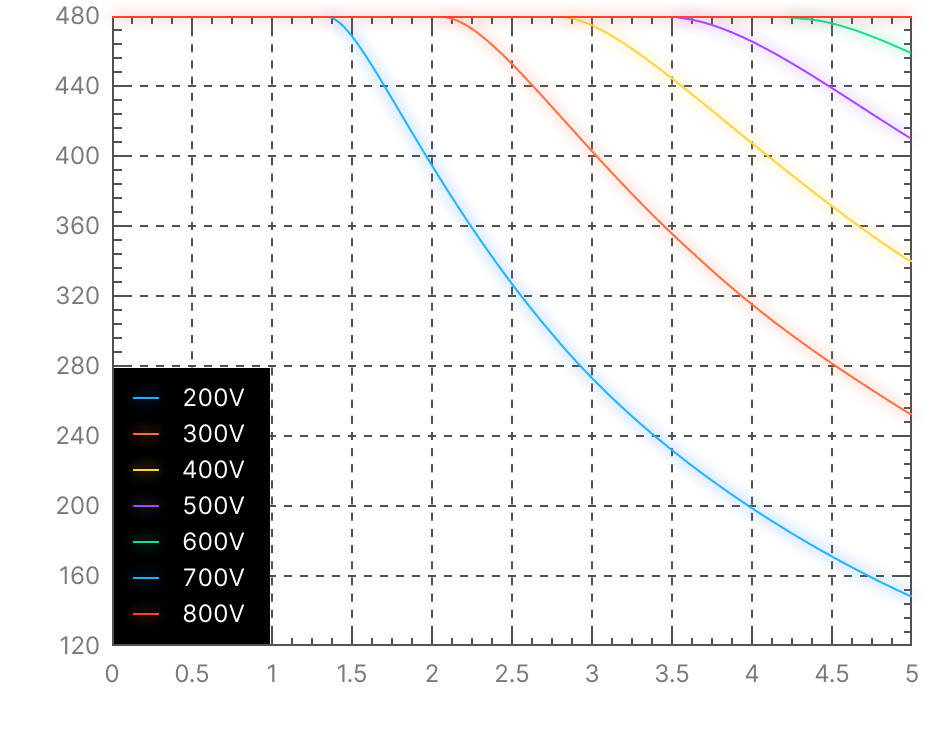

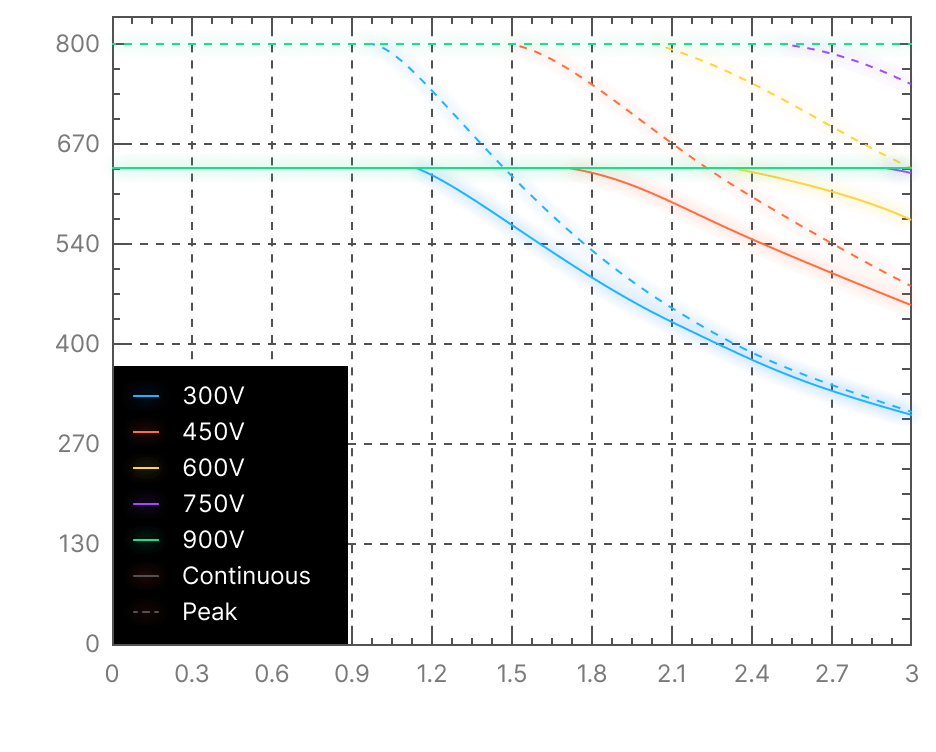

Motor Torque vs. Speed

 (w/ 4:1 Gearbox)

 (w/ 6.7:1 Gearbox)

Patent Pending

Revolutionizing Winding Technology

H3X has developed a novel stator winding and high voltage insulation system that offers a >40% improvement over conventional windings in terms of maximum continuous current density.

High fill factor (>70%)

Thermally conductive (> 5 W/m-K bulk)

Partial discharge resistant (1800V)

Scalable to higher power MW-class machines

High temperature (265 °C)

Patent Pending

33kW in a 4kg Package

The HPDM-30 is a high power density integrated motor drive with a continuous power rating of 33 kW and a mass of only 4.1 kg. The motor utilizes the same core technology as the HPDM-250, combined with a new discrete SiC FET inverter running an in-house developed self-sensing rotor position algorithm.

The HPDM-30 has a peak specific power of > 10 kW/kg and can be used as a motor or generator. The unit can also be stacked axially to form 66kW and 99kW machines.

Specifications:
Peak Torque
19.6 Nm
Peak Power
41 kW
Speed Range
0 – 20,000 RPM
Continuous Torque
15.8 Nm
Continuous Power
33 kW
Peak Specific Power
10 kW/kg
Peak Power Density
19.8 kW/L
Continuous Specific Power
8 kW/kg
Continuous Power Density
15.9 kW/L
Diameter
130 mm
Length
156 mm
Mass
4.1 kg
Volume
2.07 L

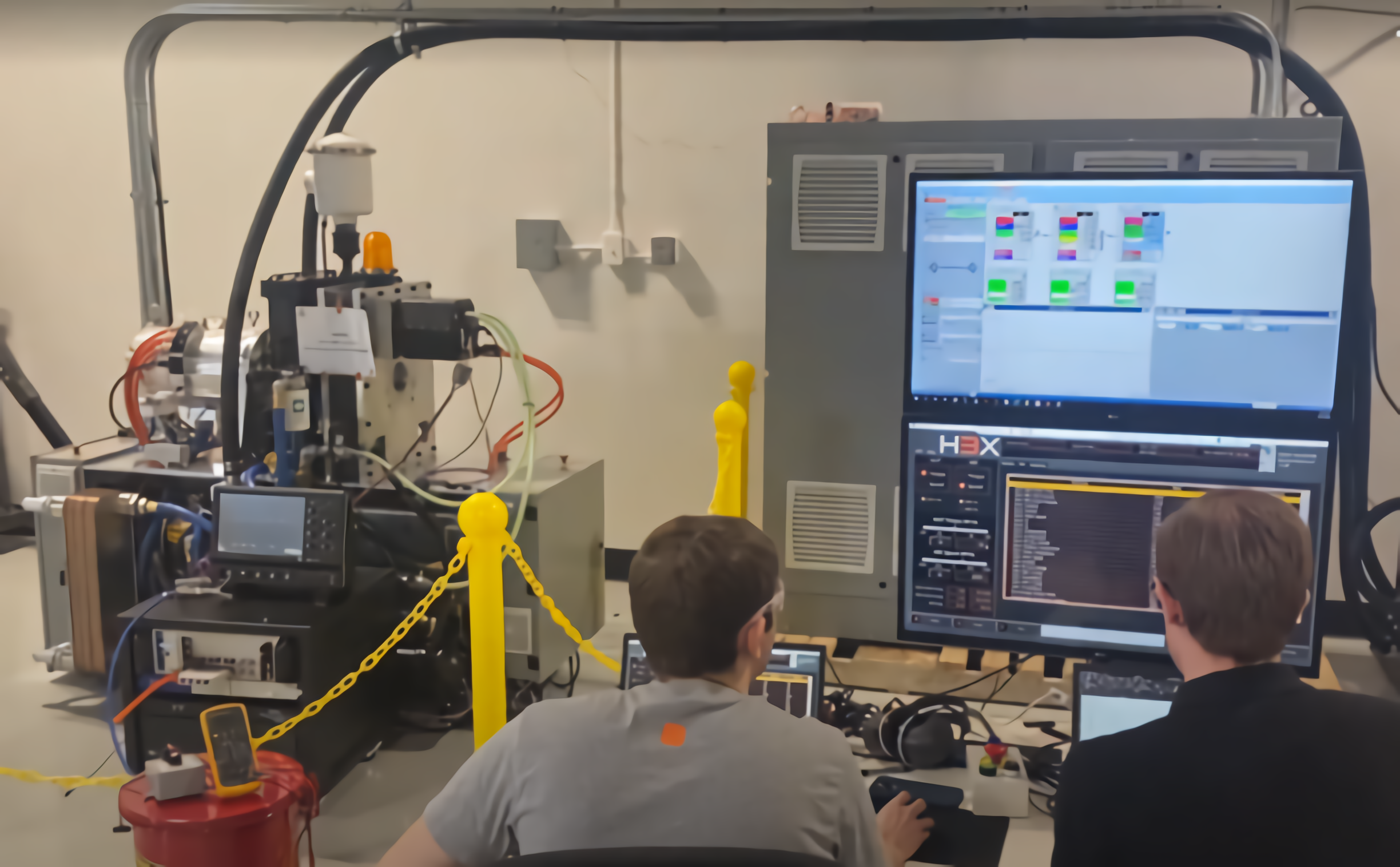

These specifications are based on HPDM-30 dynamometer test data.

Patent Pending

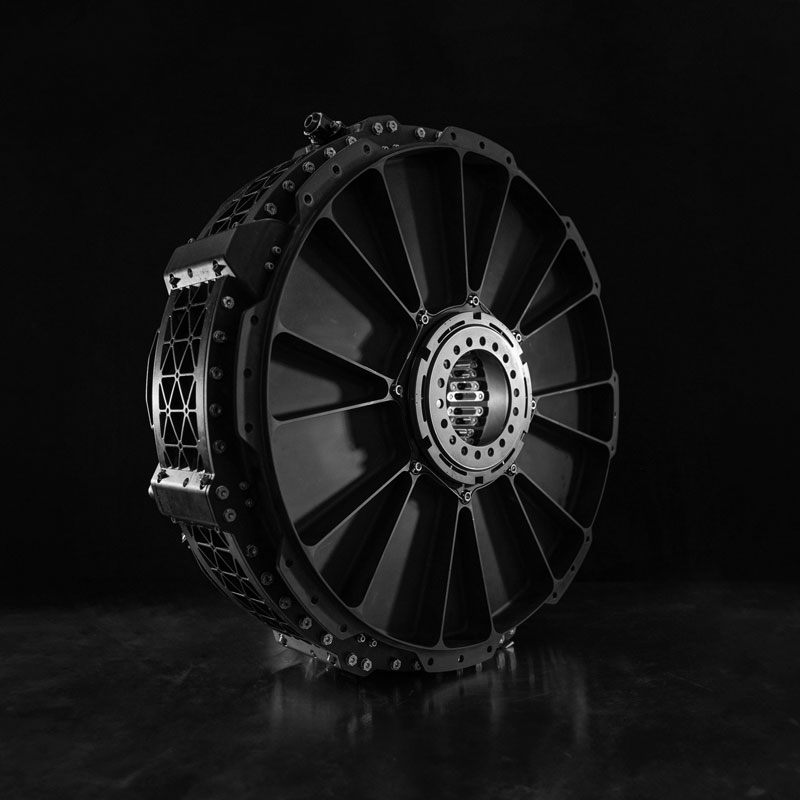

1.5MW in a 130kg Package

8 independent HVDC connectors for fault tolerant independent power delivery chains

8 Independent coolant ports for fault tolerant thermal management.

8 Independent Inverter-Stator sectors for unparalleled fault tolerance.

Hollow shaft for variable pitch mechanism and motor stacking - up to 8 HPDM-1500s (12MW)

The EPU is hermetically sealed front to back to reduce risk of FOD and debris

The HPDM-1500 is an ultra-high power density multisector IMD for primary propulsor applications on large electric aircraft and marine vessels. Based on the same core technology as the H3X HPDM-250, this EPU has a continuous specific power of >10 kW/kg and features the highest level of fault tolerance and reliability with its 8 independent drive sectors.

Stackable up to 9 MW

Specifications:
Max Continuous Power
1.5 MW
Max Continuous Torque
5,730 Nm
Mass
130 kg
Max Speed
2500 RPM
Efficiency at Cruise (typical)
96%
Sector Voltages
600 – 900 VDC
DC Input Voltage
Up to 3.6kV
Max Operating Altitude
45,000 ft
Diameter
2 ft
Length
1 ft
# of Independent Sectors
8
Communication Protocols
CAN (ARINC-825), RS-485
Time Between Overhaul
10,000 hours
Certification Intent
Part 33, DO160, DO178, ARP4754

These specifications are estimates extrapolated from our lower power product testing and simulation.

Specifications:
Max Continuous Power
3.0 MW
Max Continuous Torque
11,460 Nm
Mass
260 kg
Max Speed
2500 RPM
Efficiency at Cruise (typical)
96%
Sector Voltages
600 – 900 VDC
DC Input Voltage
Up to 3.6kV
Max Operating Altitude
45,000 ft
Diameter
2 ft
Length
2 ft
# of Independent Sectors
24
Communication Protocols
CAN (ARINC-825), RS-485
Time Between Overhaul
10,000 hours
Certification Intent
Part 33, DO160, DO178, ARP4754

These specifications are estimates extrapolated from our lower power product testing and simulation.

Specifications:
Max Continuous Power
4.5 MW
Max Continuous Torque
17,190 Nm
Mass
390 kg
Max Speed
2500 RPM
Efficiency at Cruise (typical)
96%
Sector Voltages
600 – 900 VDC
DC Input Voltage
Up to 3.6kV
Max Operating Altitude
45,000 ft
Diameter
2 ft
Length
3 ft
# of Independent Sectors
24
Communication Protocols
CAN (ARINC-825), RS-485
Time Between Overhaul
10,000 hours
Certification Intent
Part 33, DO160, DO178, ARP4754

These specifications are estimates extrapolated from our lower power product testing and simulation.

Specifications:
Max Continuous Power
6.0 MW
Max Continuous Torque
22,920 Nm
Mass
520 kg
Max Speed
2500 RPM
Efficiency at Cruise (typical)
96%
Sector Voltages
600 – 900 VDC
DC Input Voltage
Up to 3.6kV
Max Operating Altitude
45,000 ft
Diameter
2 ft
Length
4 ft
# of Independent Sectors
32
Communication Protocols
CAN (ARINC-825), RS-485
Time Between Overhaul
10,000 hours
Certification Intent
Part 33, DO160, DO178, ARP4754

These specifications are estimates extrapolated from our lower power product testing and simulation.

Specifications:
Max Continuous Power
7.5 MW
Max Continuous Torque
28,650 Nm
Mass
650 kg
Max Speed
2500 RPM
Efficiency at Cruise (typical)
96%
Sector Voltages
600 – 900 VDC
DC Input Voltage
Up to 3.6kV
Max Operating Altitude
45,000 ft
Diameter
2 ft
Length
5 ft
# of Independent Sectors
40
Communication Protocols
CAN (ARINC-825), RS-485
Time Between Overhaul
10,000 hours
Certification Intent
Part 33, DO160, DO178, ARP4754

These specifications are estimates extrapolated from our lower power product testing and simulation.

Specifications:
Max Continuous Power
9.0 MW
Max Continuous Torque
34,380 Nm
Mass
780 kg
Max Speed
2500 RPM
Efficiency at Cruise (typical)
96%
Sector Voltages
600 – 900 VDC
DC Input Voltage
Up to 3.6kV
Max Operating Altitude
45,000 ft
Diameter
2 ft
Length
6 ft
# of Independent Sectors
48
Communication Protocols
CAN (ARINC-825), RS-485
Time Between Overhaul
10,000 hours
Certification Intent
Part 33, DO160, DO178, ARP4754

These specifications are estimates extrapolated from our lower power product testing and simulation.

The flexibility and modularity of the HPDM architecture enables us to easily scale integrated motor drive designs ranging from 30kW to 30MW with >10 kW/kg (continuous) and minimal NRE cost. Get in touch today for a custom solution optimized for your application.

HPDM-320

320 kW | 2500 RPM | 35 kg

HPDM-320 Datasheet

HPDM-150

150 kW | 20K RPM | 11 kg

HPDM-150 Datasheet

HPDM-30X

30 kW | 70K RPM | 4.4kg

HPDM-30X Datasheet
